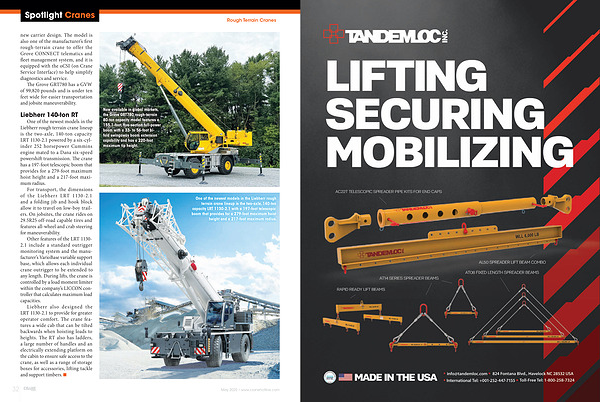

Spotlight Cranes
Rough Terrain Cranes new carrier design. The model is also one of the manufacturer’ s first rough-terrain crane to offer the Grove CONNECT telematics and fleet management system, and it is equipped with the oCSI( on Crane Service Interface) to help simplify diagnostics and service.
The Grove GRT780 has a GVW of 99,820 pounds and is under ten feet wide for easier transportation and jobsite maneuverability.
Liebherr 140-ton RT
One of the newest models in the Liebherr rough terrain crane lineup is the two-axle, 140-ton capacity LRT 1130-2.1 powered by a six-cylinder 252 horsepower Cummins engine mated to a Dana six-speed powershift transmission. The crane has a 197-foot telescopic boom that provides for a 279-foot maximum hoist height and a 217-foot maximum radius.
For transport, the dimensions of the Liebherr LRT 1130-2.1 and a folding jib and hook block allow it to travel on low-boy trailers. On jobsites, the crane rides on 29.5R25 off-road capable tires and features all-wheel and crab steering for maneuverability.
Other features of the LRT 1130- 2.1 include a standard outrigger monitoring system and the manufacturer’ s VarioBase variable support base, which allows each individual crane outrigger to be extended to any length. During lifts, the crane is controlled by a load moment limiter within the company’ s LICCON controller that calculates maximum load capacities.
Liebherr also designed the LRT 1130-2.1 to provide for greater operator comfort. The crane features a wide cab that can be tilted backwards when hoisting loads to heights. The RT also has ladders, a large number of handles and an electrically extending platform on the cabin to ensure safe access to the crane, as well as a range of storage boxes for accessories, lifting tackle and support timbers.
Now available in global markets, the Grove GRT780 rough-terrain 80-ton capacity model features a 155.1-foot, five-section full-power boom with a 33- to 56-foot bifold swingaway boom extension capability and has a 220-foot maximum tip height.
One of the newest models in the Liebherr rough terrain crane lineup is the two-axle, 140-ton capacity LRT 1130-2.1 with a 197-foot telescopic boom that provides for a 279-foot maximum hoist height and a 217-foot maximum radius.
